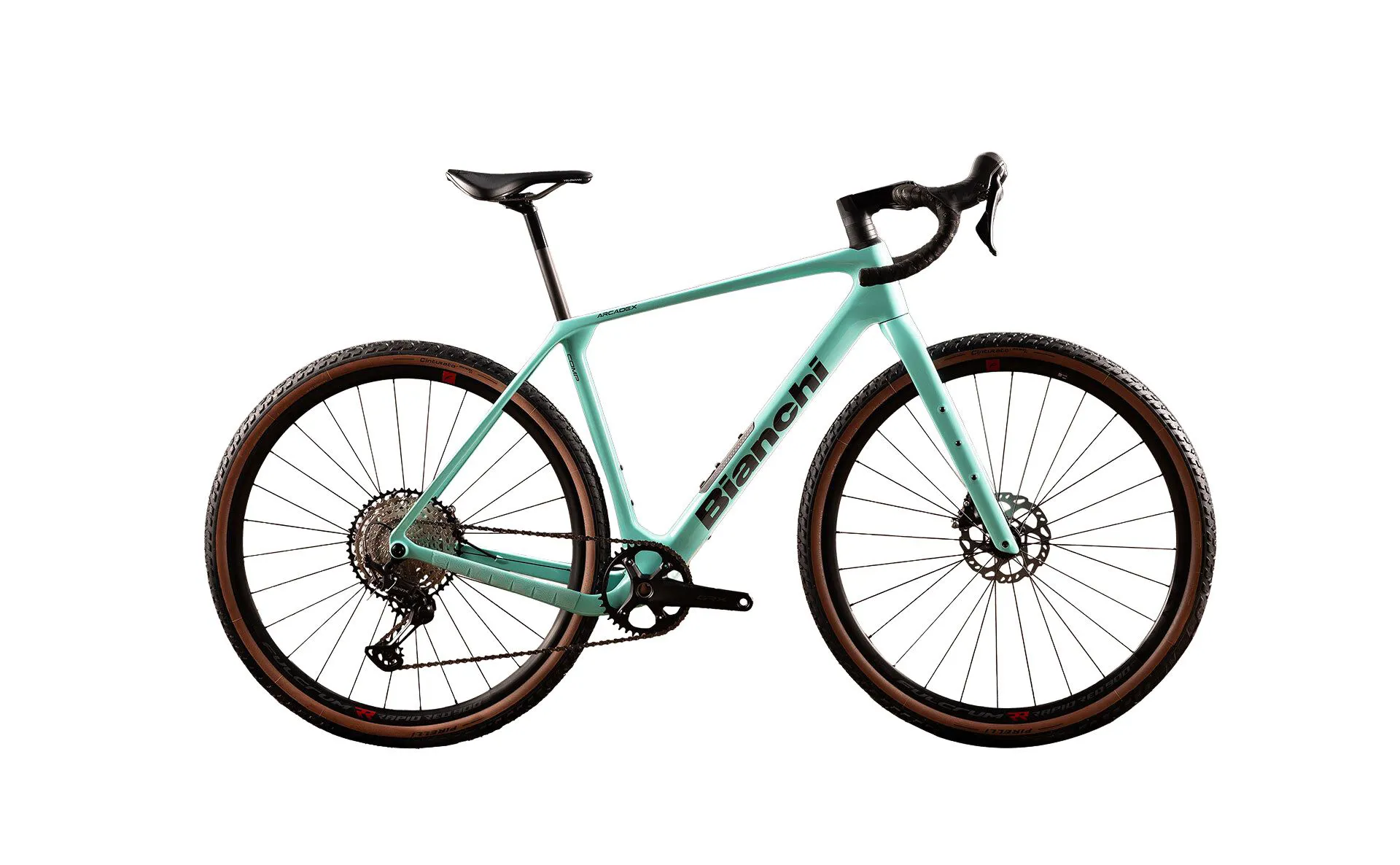

All models in the Arcadex range can be upgraded post-sale with a compatible suspension fork. Arcadex Pro comes in two attractive matte colors: Celeste with dark turquoise accents or forest green with black detailing.
All models in the Arcadex range can be upgraded post-sale with a compatible suspension fork. Arcadex Pro comes in two attractive matte colors: Celeste with dark turquoise accents or forest green with black detailing.
Bianchi

Bianchi Arcadex Comp GRX 12spd

£2,649.00
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined

Hassle free returns

RETURNS

----

Our policy lasts 30 days. If 30 days have gone by since your purchase, unfortunately, we can’t offer you a refund or exchange.

To be eligible for a return, your item must be unused and in the same condition that you received it. It must also be in the original packaging.

Several types of goods are exempt from being returned. Perishable goods such as food, flowers, newspapers or magazines cannot be returned. We also do not accept products that are intimate or sanitary goods, hazardous materials, or flammable liquids or gases.

Additional non-returnable items:
Gift cards
Downloadable software products
Some health and personal care items

To complete your return, we require a receipt or proof of purchase.

Please do not send your purchase back to the manufacturer.

There are certain situations where only partial refunds are granted: (if applicable)

Book with obvious signs of use
CD, DVD, VHS tape, software, video game, cassette tape, or vinyl record that has been opened.
Any item not in its original condition is damaged or missing parts for reasons not due to our error.
Any item that is returned more than 30 days after delivery
Refunds (if applicable)

Once your return is received and inspected, we will send you an email to notify you that we have received your returned item. We will also notify you of the approval or rejection of your refund.

If you are approved, then your refund will be processed, and a credit will automatically be applied to your credit card or original method of payment, within a certain amount of days.

Late or missing refunds (if applicable)

If you haven’t received a refund yet, first check your bank account again. Then contact your credit card company, it may take some time before your refund is officially posted. Next, contact your bank. There is often some processing time before a refund is posted.

If you’ve done all of this and you still have not received your refund yet, please contact us at sales@afan.wales.

Sale items (if applicable)

Only regular priced items may be refunded, unfortunately, sale items cannot be refunded.

Exchanges (if applicable)

We only replace items if they are defective or damaged. If you need to exchange it for the same item, send us an email at sales@afan.wales and send your item to Unit 25 Glan Yr Afon Industrial Estate, Llanbadarn Fawr, Aberystwyth, SY23 3JQ, Wales.

Gifts

If the item was marked as a gift when purchased and shipped directly to you, you’ll receive a gift credit for the value of your return. Once the returned item is received, a gift certificate will be mailed to you.

If the item wasn’t marked as a gift when purchased, or the gift giver had the order shipped to themselves to give to you later, we will send a refund to the gift giver and he will find out about your return.

Shipping

To return your product, you should mail your product to Unit 25 Glan Yr Afon Industrial Estate, Llanbadarn Fawr, Aberystwyth, SY23 3JQ, Wales.

You will be responsible for paying for your own shipping costs for returning your item. Shipping costs are non-refundable. If you receive a refund, the cost of return shipping will be deducted from your refund.

Depending on where you live, the time it may take for your exchanged product to reach you may vary.

Bianchi Arcadex Comp GRX 12spd

Season:2025

Brand:Bianchi

Code:YTB87

Bianchi Arcadex 2024
The new Arcadex comes in two versions, Pro and Comp. The Arcadex Pro comes equipped with durable Velomann Terbium 30 carbon fiber wheels, ready to take on any adventure, and offers a Rockshox Rudy XPLR suspension fork with 30mm of travel for handling rougher terrain. Choose from two groupset options: the electronic SRAM APEX/GX AXS and the mechanical Shimano GRX 822. For those who want to start pushing themselves beyond their comfort zone, there’s the Arcadex Comp. The groupset choice is between two mechanical options: Shimano GRX 610 or SRAM APEX. Both versions are equipped with the Mitora 149 H1 saddle to provide the comfort needed even on multi-day trips.


TECH SPECS

  • FRAMESET

    1. FRAME

      Arcadex Comp Disc Brake Specification: Flat Mount 140/160 Bottom Braket Standard: PressFit 86.5 X Ø41 Rear Axle: thru12 OLD (Over-Locknut-Dimension): 142 mm Front Derailleur:Non Compatible Rear Derailleur: SRAM UDH Hanger type Max Chainring Compatibility:
    2. FORK

      Bianchi Arcadex Fork Disc Brake Specification: Flat Mount 140/160 Front Axle: thru12 OLD (Over-Locknut-Dimension): 100 mm Tire Clearance: ETRTO 622-42mm Steer tube Diameter: 1 1/8"" Material: Epoxy - SM Carbon Fiber Composite
    3. HEADSET

      Bianchi Custom Acros ICR (Internal Cable Rounting) Spacers:5 mm x1, 10mm x3 Headtube Cover: Bianchi Costum Compresion Ring: 1.125 Inch Top Bearing: Angular contact Bearing 42x52x7 + seal Bottom Bearing: Angular contact Bearing 40x52x7 + seal
  • DRIVETRAIN

    1. SHIFTERS

      Shimano GRX 610 ST/BL-RX610
    2. REAR DERAILLEUR

      Shimano GRX 822 RD-RX822, SGS Maximum Cassette Sprocket 51T
    3. CRANKSET

      Shimano GRX 610 FC-RX610-1, 40T Crank Length: 170mm-XS(47)-SM(51), 172.5mm-MD(55)-LG(58), 175mm-XL(61)
    4. BOTTOM BRACKET

      Shimano SM-BB72-41B, press fit
    5. CHAIN

      Shimano CN-M7100
    6. CASSETTE

      Shimano CS-M7100-12 speed, 11-51T Driver body Interface: MicroSpline
  • BRAKES

    1. BRAKES

      Shimano Hydraulic Brake, BR-RX400
    2. ROTOR

      Shimano SM-RT70 IceTech Hub Interface: Centerlock Rotor Diameter: 160 mm (front&Rear)
  • WHEELS

    1. WHEELS

      Fulcrum RapidRed 900 2-Way Fit Ready (for clincher and tubeless ready) Rim Diameter: 700C Material: Aluminum Alloy Rim Height: 24 mm Inner Wigth Channel: 22 mm
    2. TIRE

      Pirelli Cinturato™ GRAVEL M Classic, 45-622 tan sidewall
  • COCKPIT

    1. STEM

      Velomann AICR Alloy Rise: -2° Steerer Diameter: 1-1/8"" (28.6mm) HB interface Diameter: 1-1/4"" (31.8mm) Stem Lengths: 80mm - XS(47), 90mm - SM(51), 100mm-MD(55), 110mm-LG(58),120m -XL(61)
    2. HANDLEBAR

      Velomann Gravel ICR Alloy Flare: 16° Drop: 130mm Reach 70mm Interface Diameter: 1 1/4"" (31.8mm) HandleBar Widths: 400 - SX(47) SM(51), 420 - MD(55) LG(58), 440 -XL(61)
    3. GRIPS

      Bianchi Hexagon tape 2.5mm thickness, Full black
  • SADDLE

    1. SEATPOST

      Velomann Carbon UD SeatPost O.D: Ø27.2 mm Seatpost lengths: 300mm-SX(47), 350mm- SM(51) MD(55), 400mm-LG(58) XL(61)
    2. SADDLE

      Velomann MITORA 149 H2 cover: soft touch, padding: foam, shell: nylon carbon rails: Steel lenght: 250mm width: 149mm

Based on component availability, Bianchi reserves the right to make changes on specifications without notice.

GEOMETRY

SIZEABCDEFGG1HIXYWB
XS410527430759060174,5°70,5°514253765441020
SM4485454307511061574°70,5°514253835631034
MD4855644307513062573,5°71°514253915841044
LG5155834307515563973,5°71,5°514254026101059
XL5506054324327518565673°71,5°514254106381077
